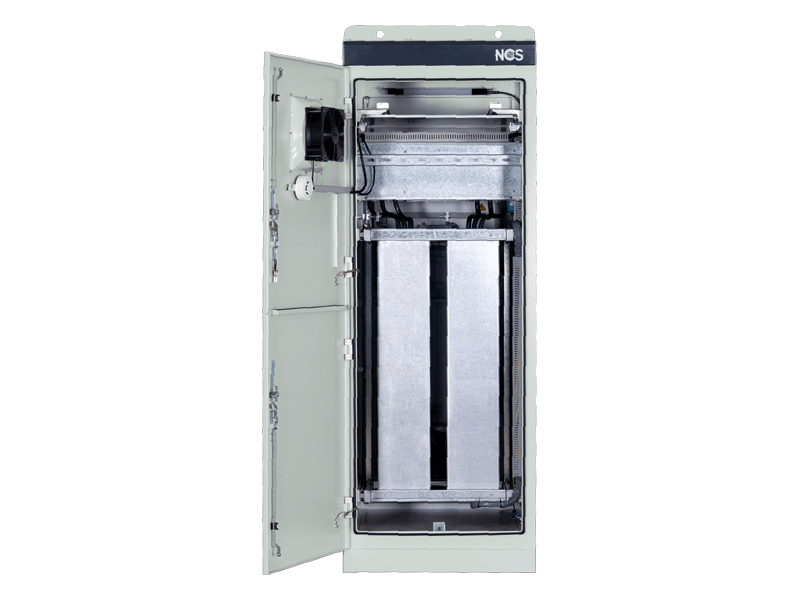

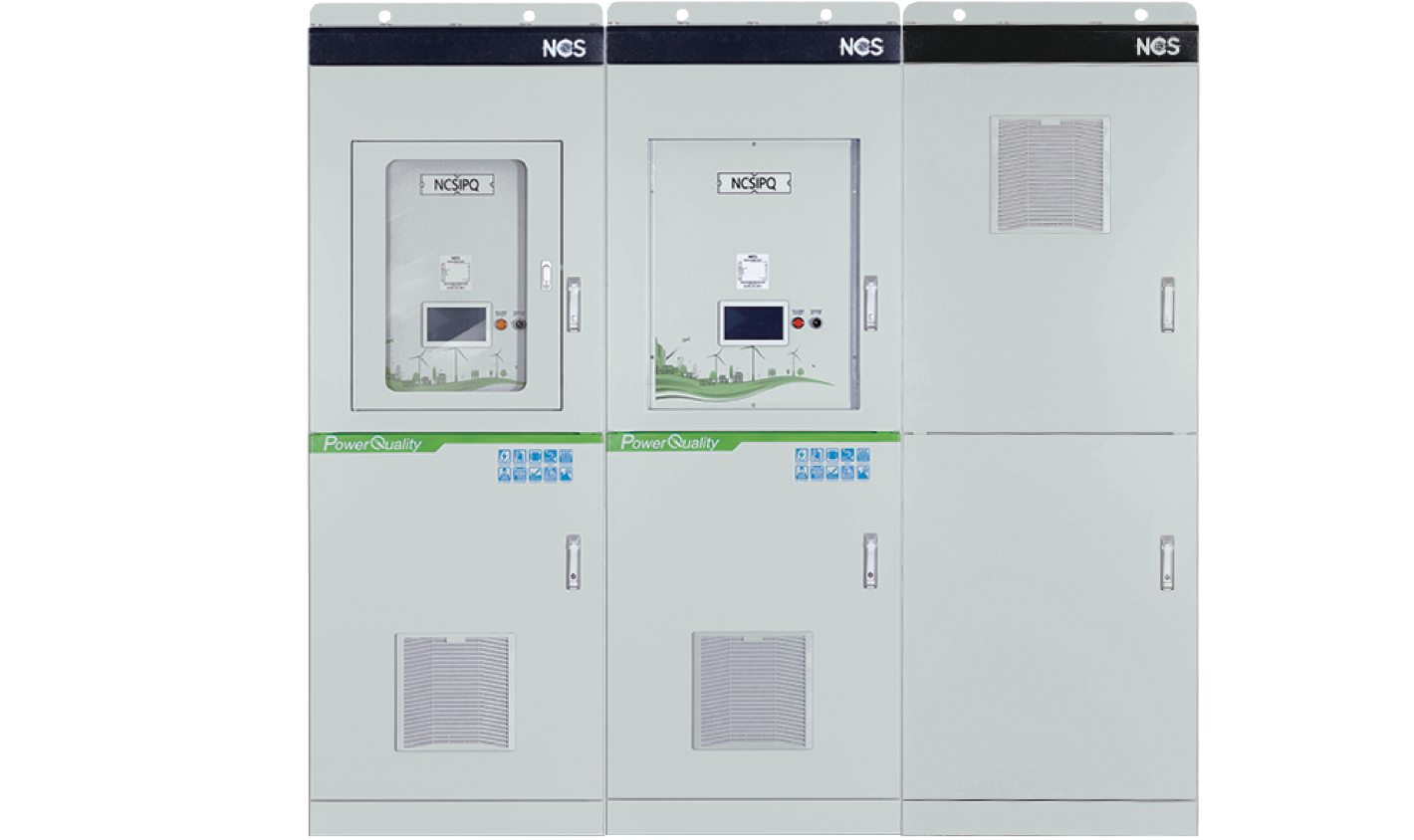

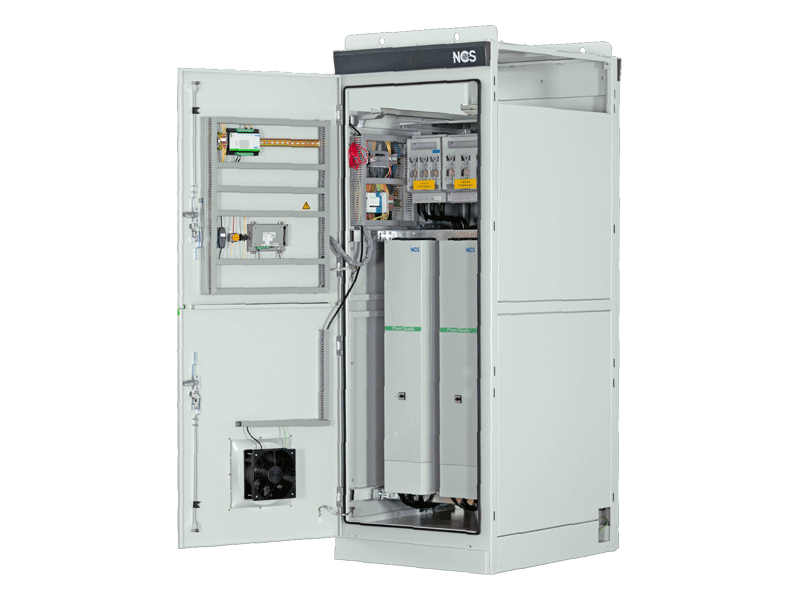

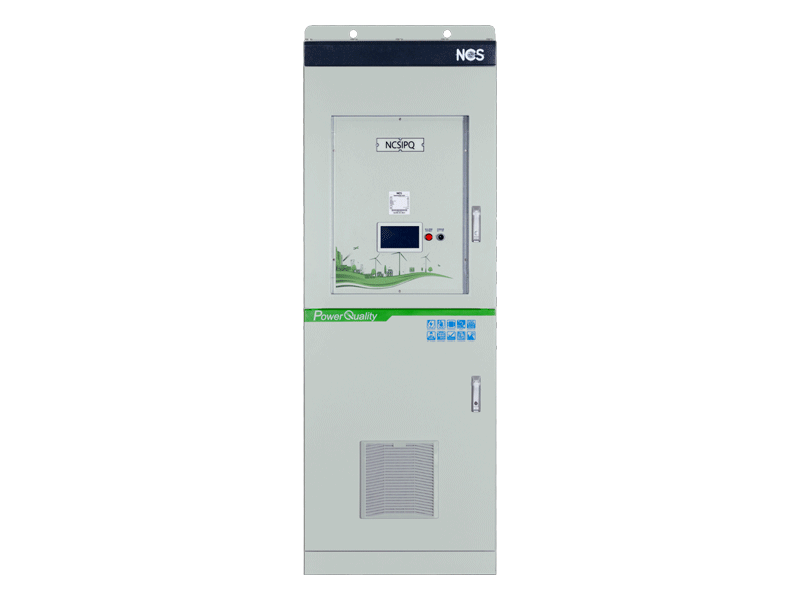

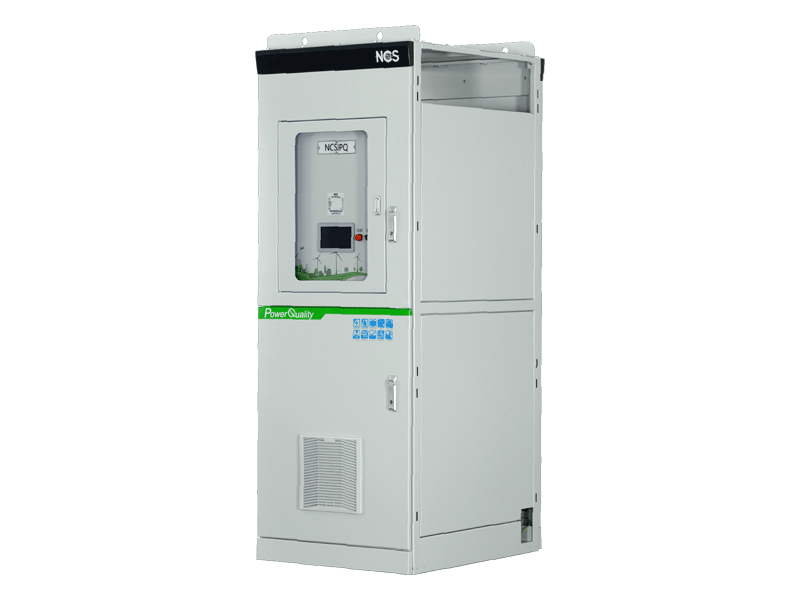

NCSIPQ
Intelligent type Power Quality Compensation System

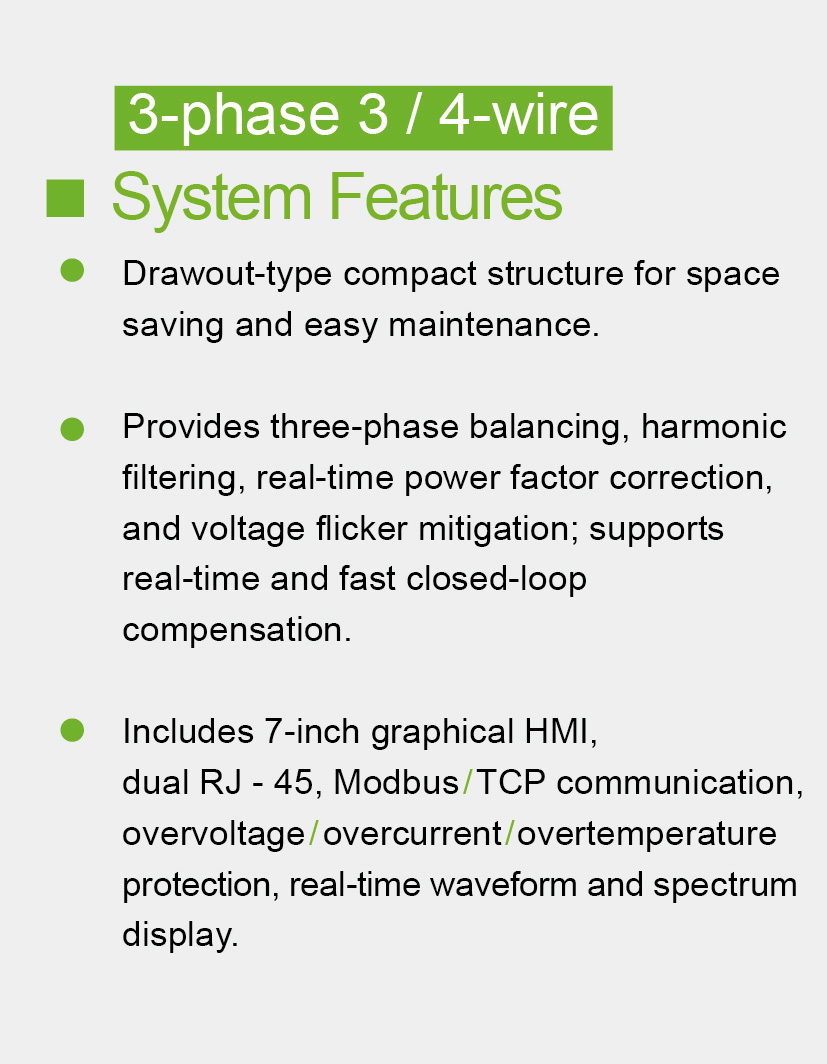

Features
An all-in-one solution for reactive power compensation and power quality management that combines multiple functions including harmonic mitigation (APF), power factor correction (SVG).
Main Functions
Fast harmonic filtering and power factor compensation
Stepless reactive power compensation
Mitigation of voltage fluctuation
Reduction of inter-harmonic currents
Reduction of zero-sequence harmonics in the neutral conductor
Compensation of three-phase unbalanced power factor
Balancing of three-phase load currents
Improvement of system voltage balance
Response time < 1 ms

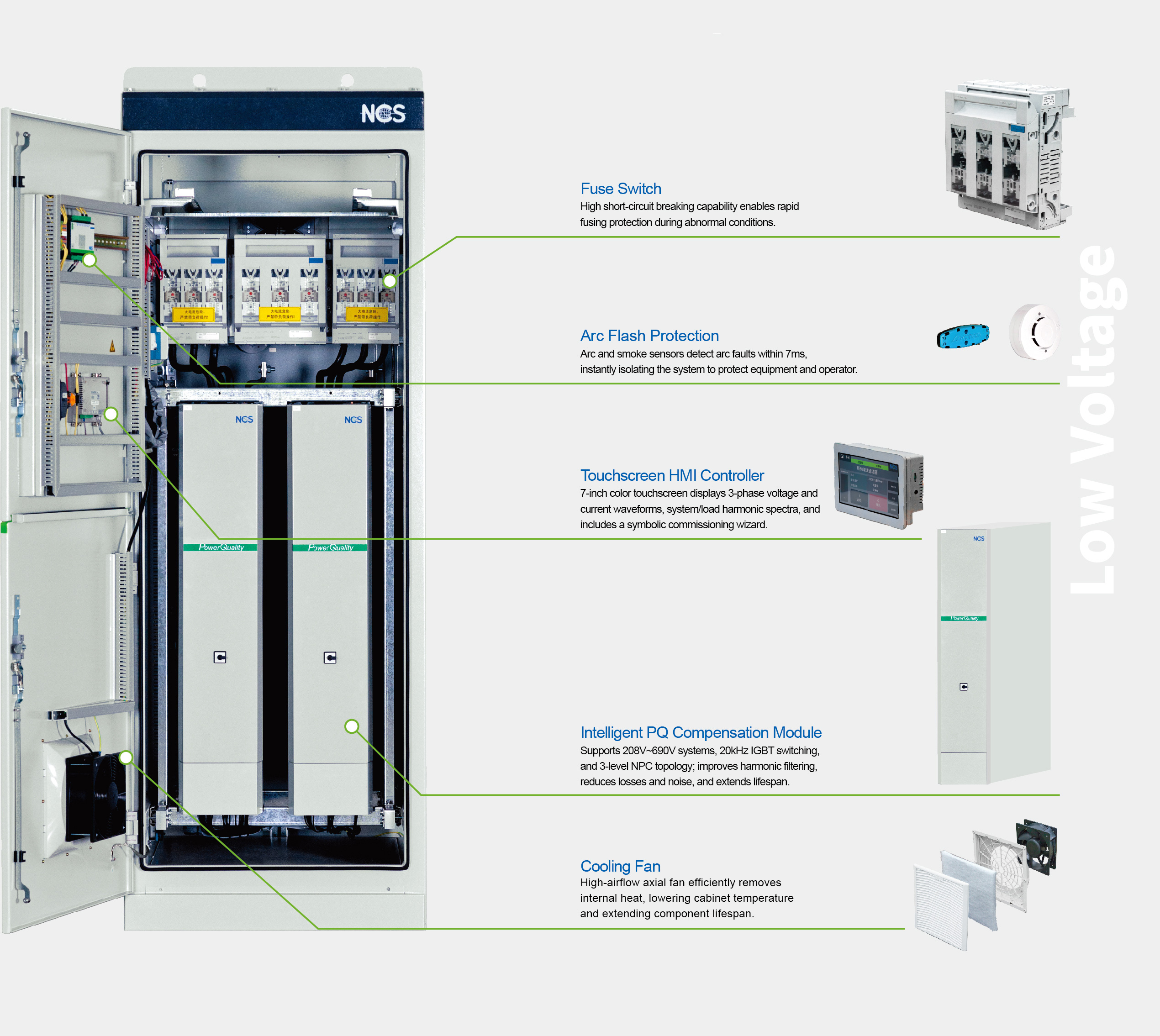

Main Components
Main incoming-line protection
Power Quality Module (PQ)
Human–Machine Interface (HMI)
Arc-flash protection system
Main Component

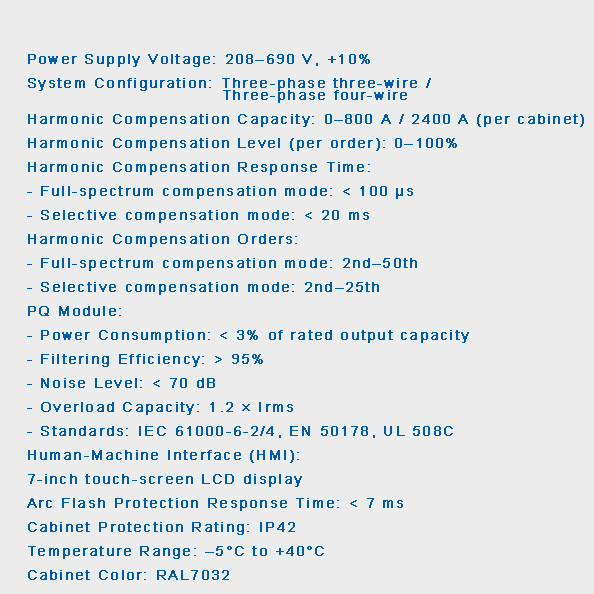

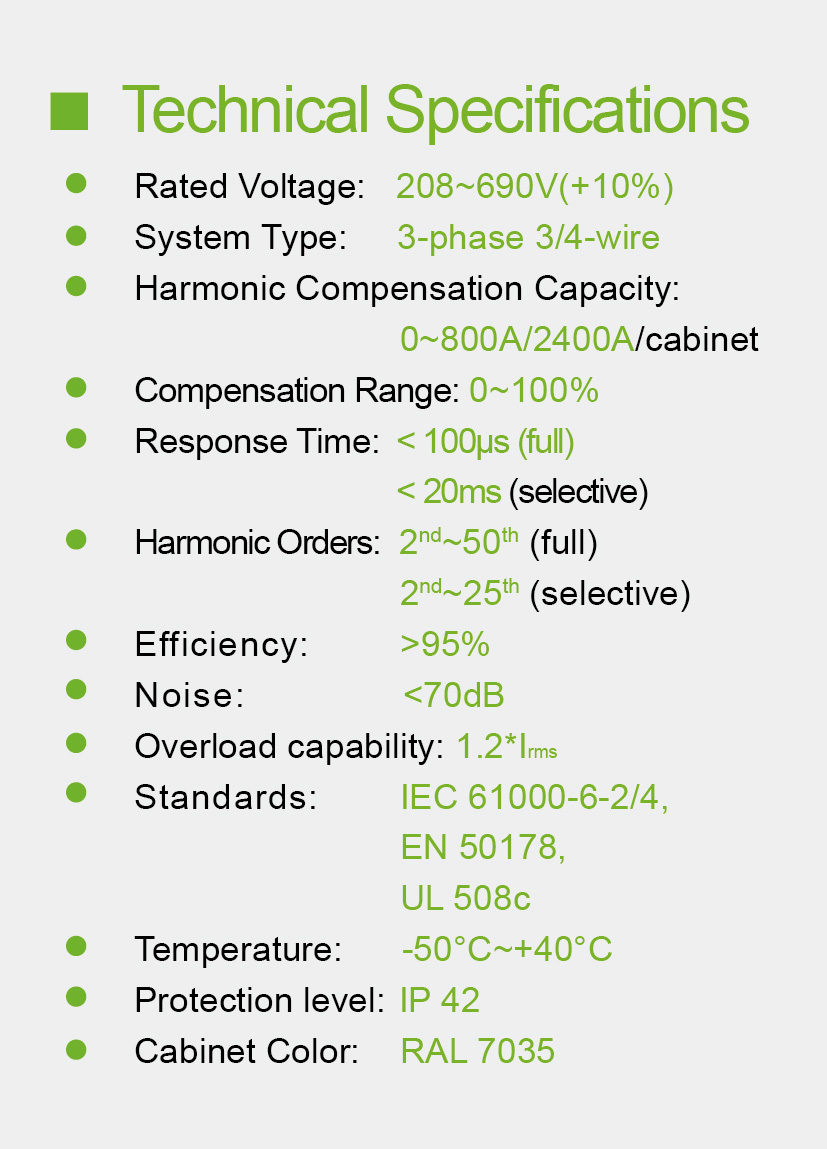

Specifications

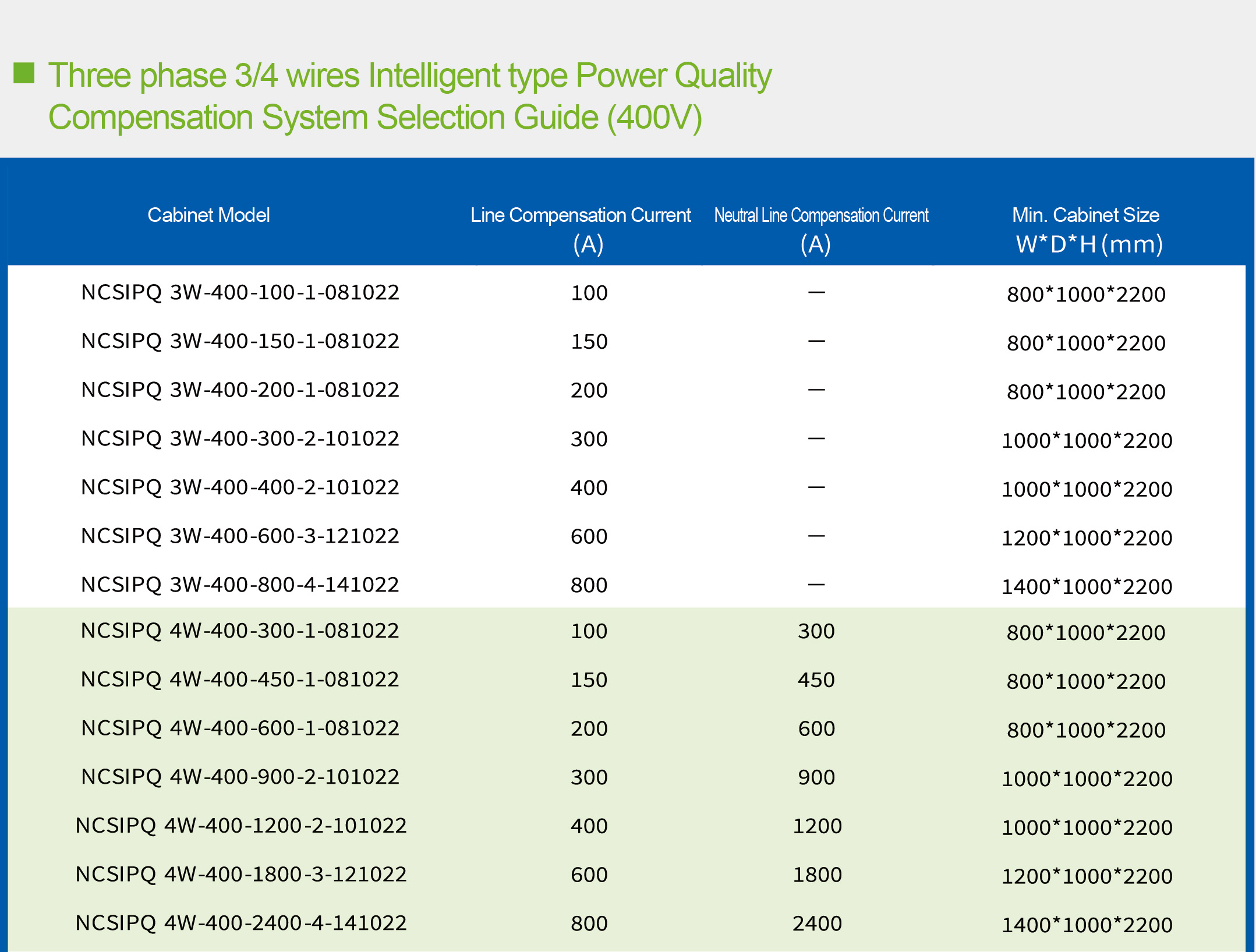

Mod&Spec
Certifications
