NCSF

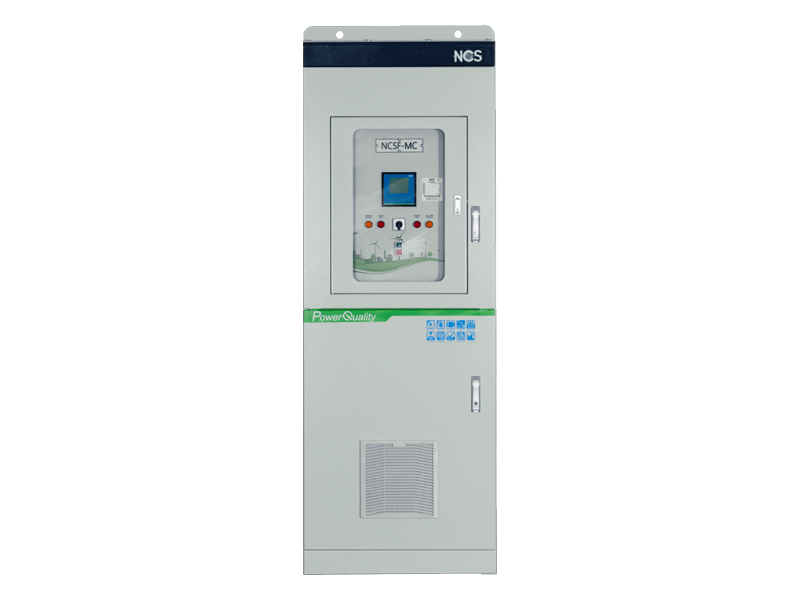

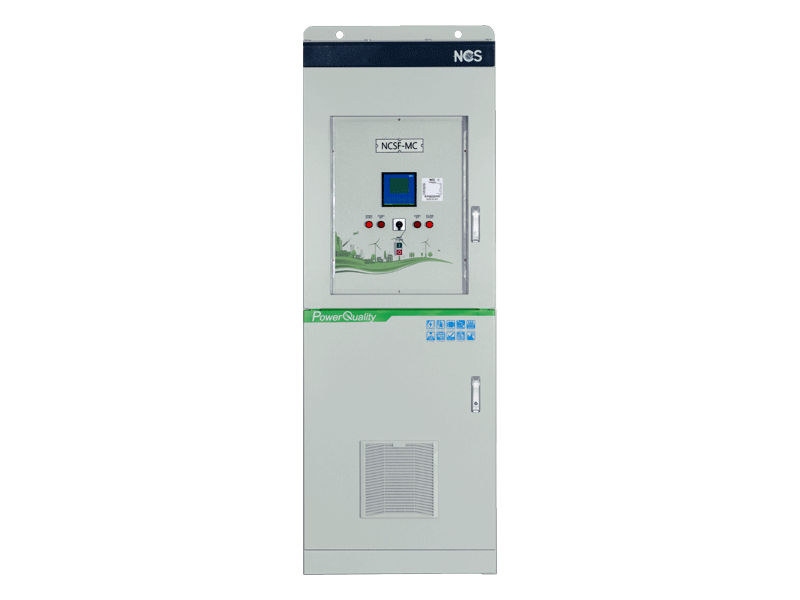

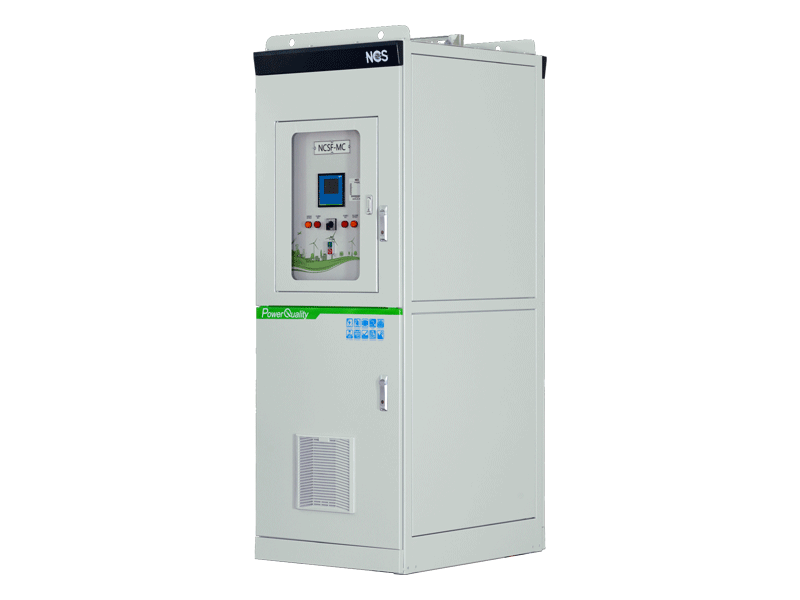

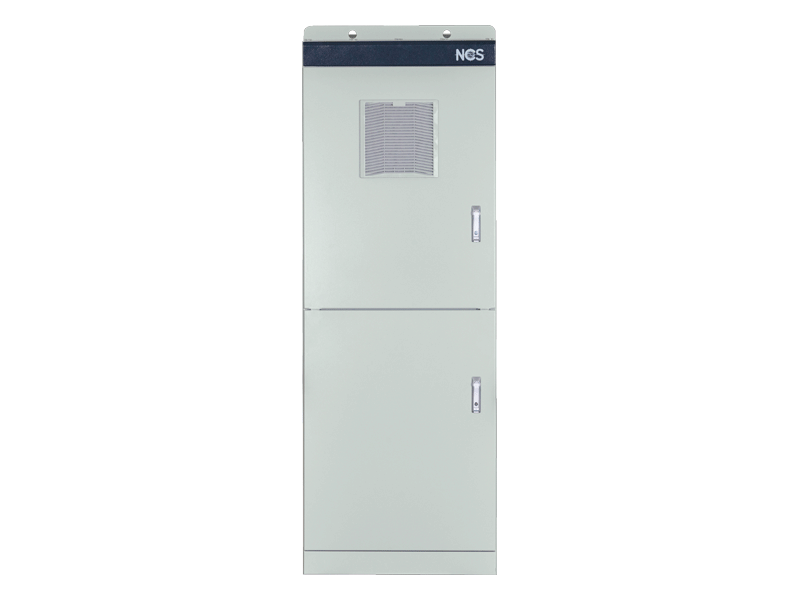

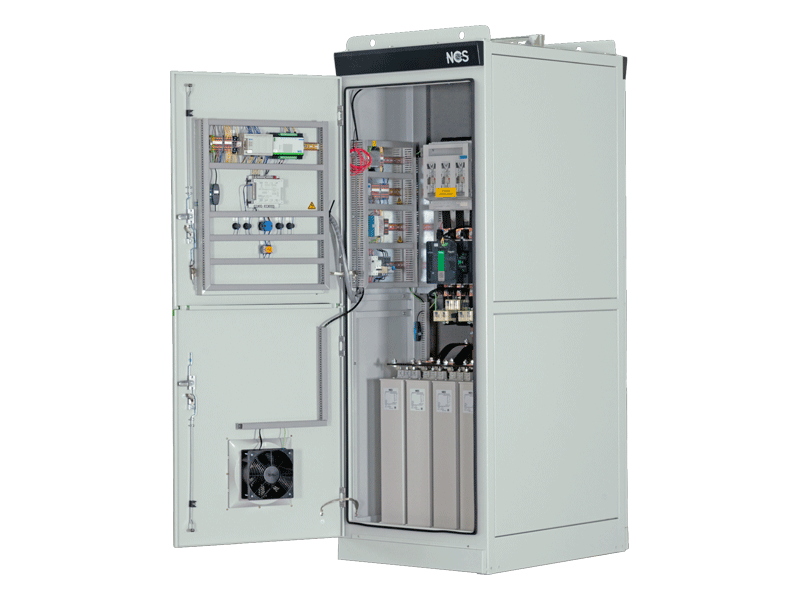

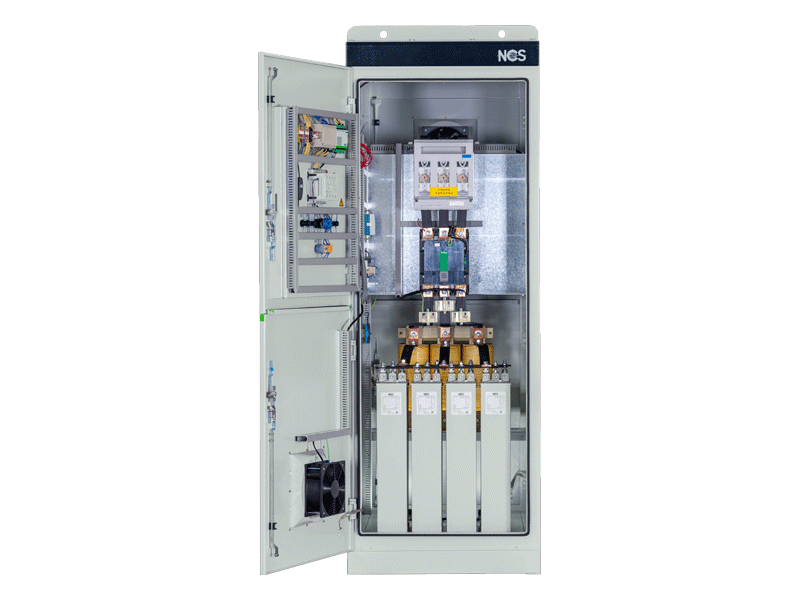

NCSFLow Voltage type Harmonic Filter System
Features

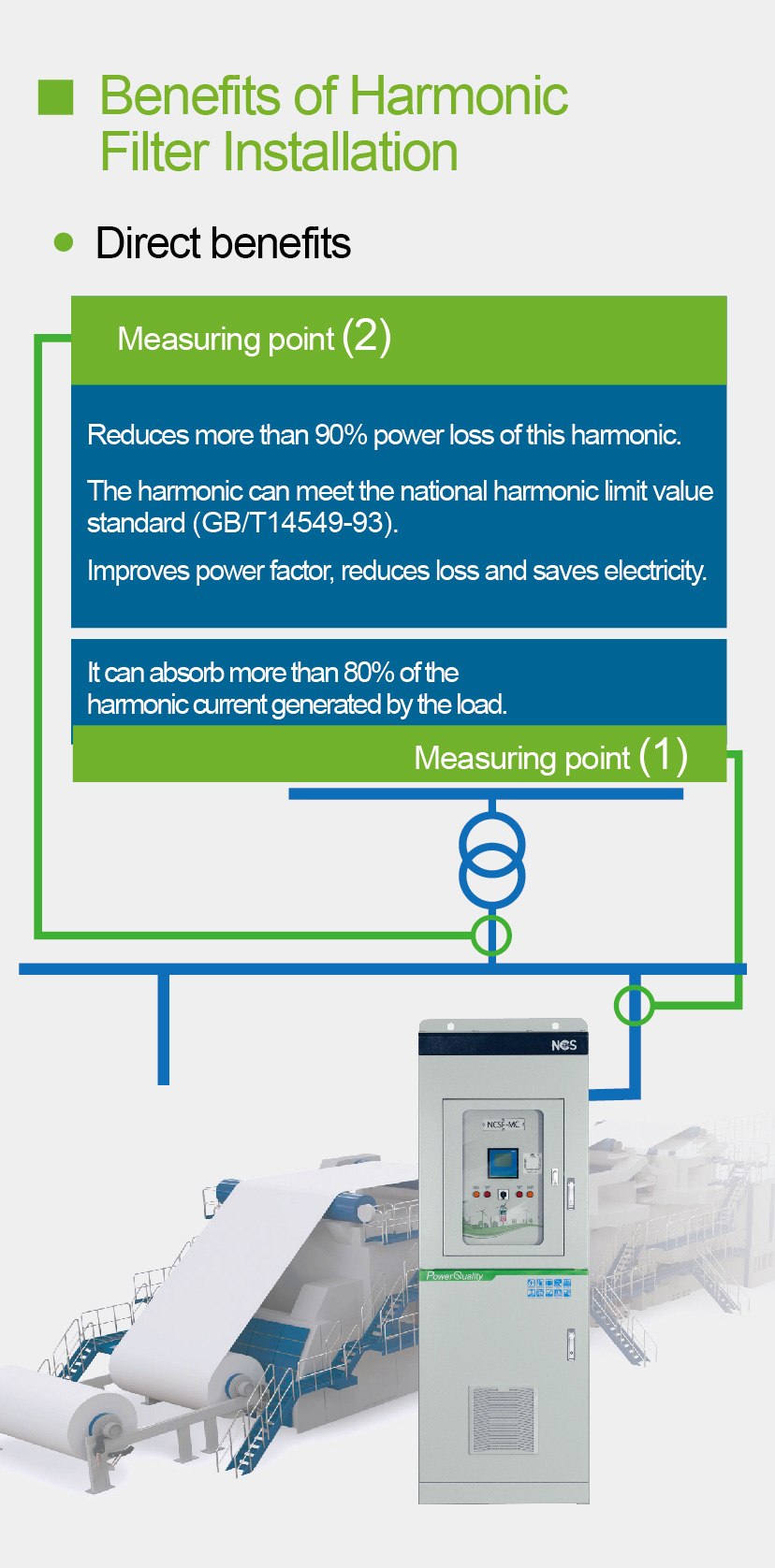

Nonlinear loads such as VFDs and rectifiers generate significant harmonic currents. Harmonic filter systems effectively absorb specific harmonics, reduce THD, provide capacitive reactive power, and improve power factor.
Main Functions
Absorb specific harmonic orders
Reduce voltage and current THD
Provide capacitive reactive power
Improve power factor

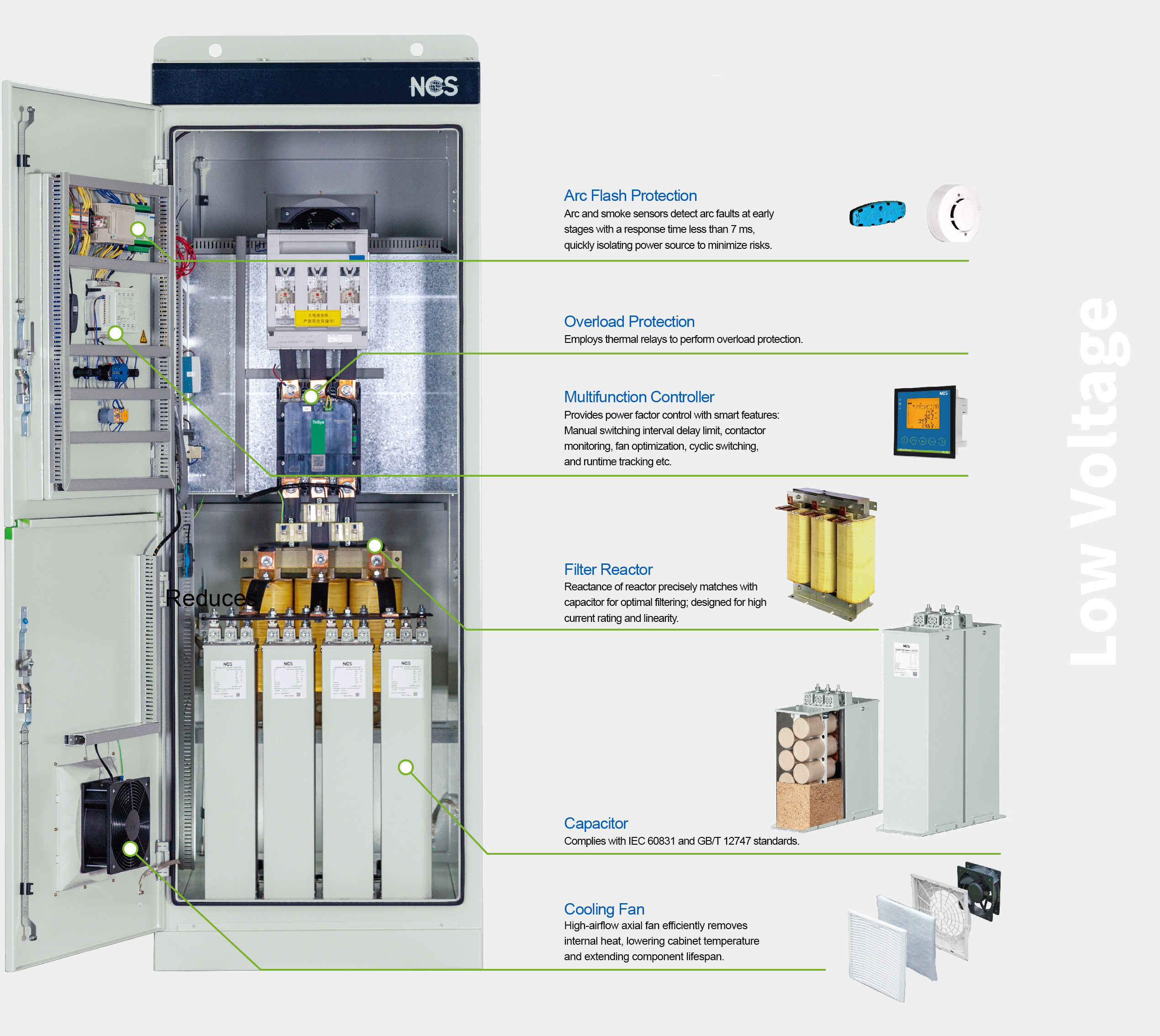

Main Components
Main incoming-line protection
Electromagnetic contactor
Overload protection relay
Harmonic filter reactor
Harmonic filter capacitor
Arc-flash protection system
Automatic Power Factor Regulator (APFR)
Main Component

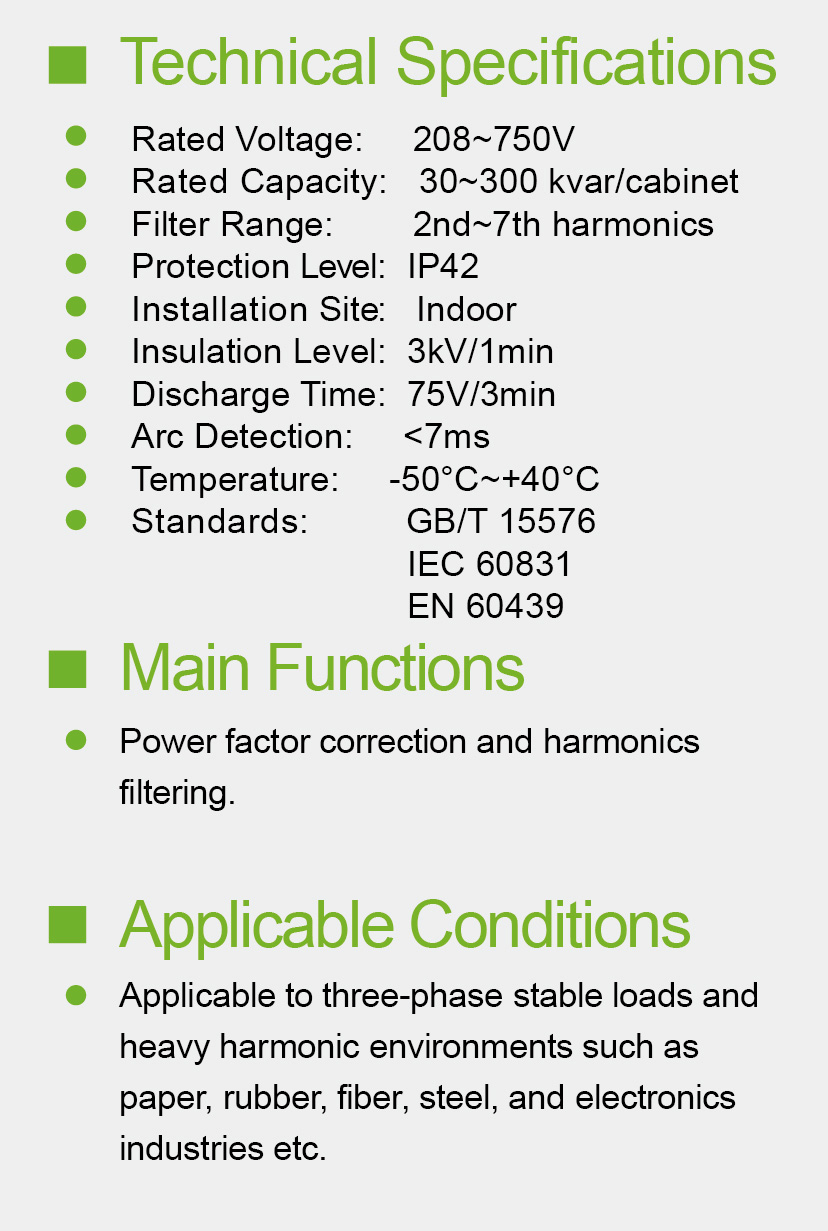

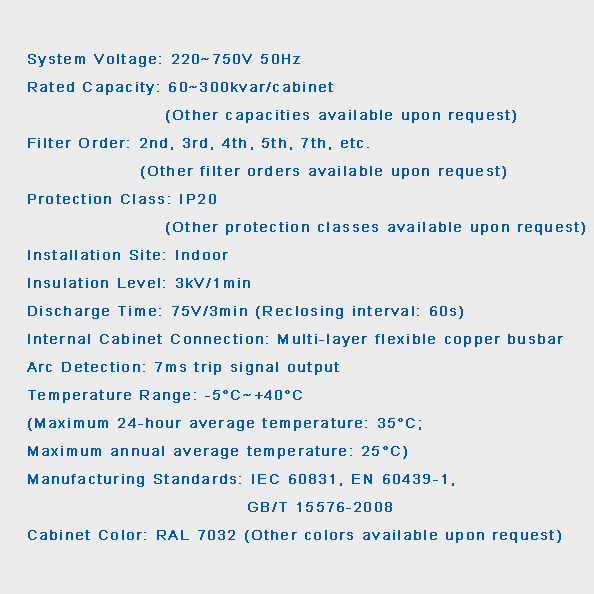

Specifications

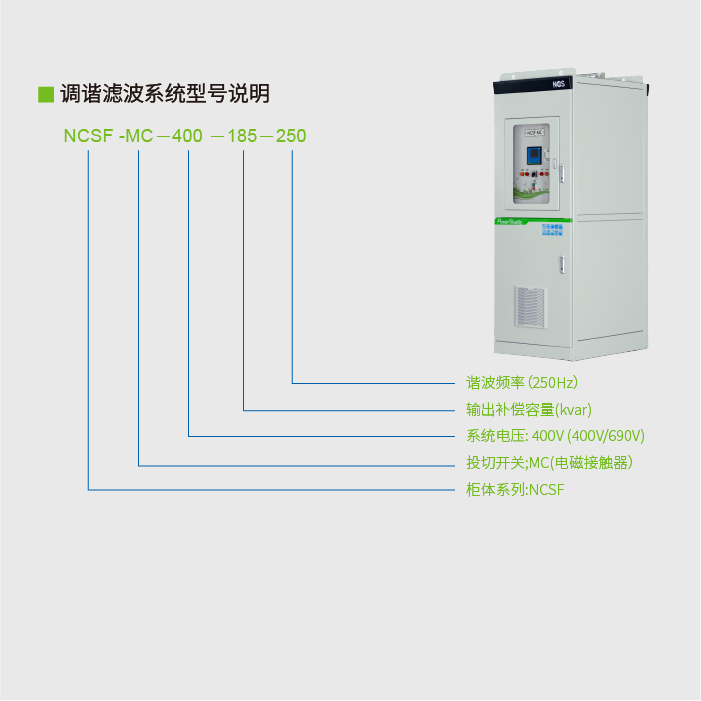

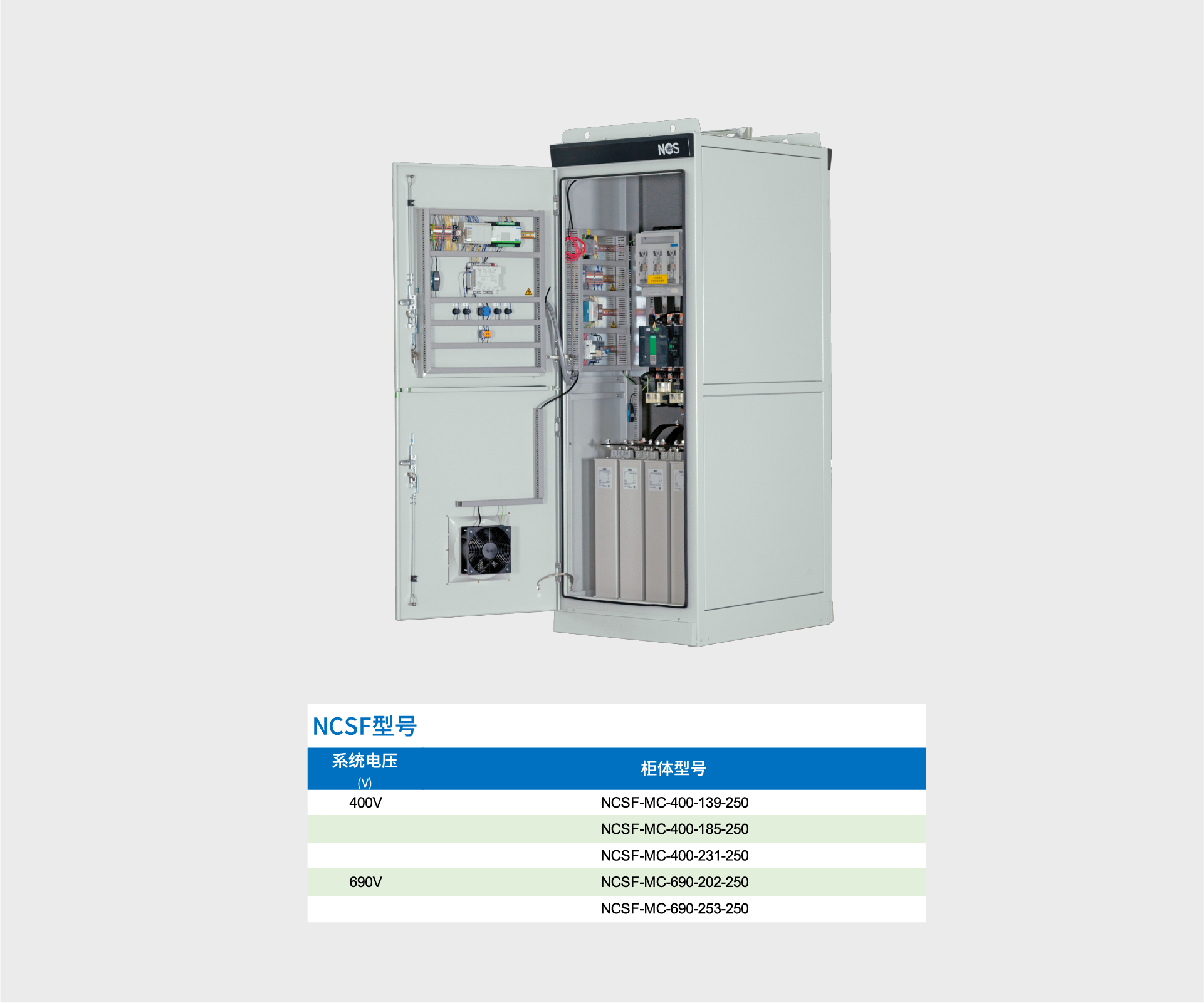

Mod&Spec

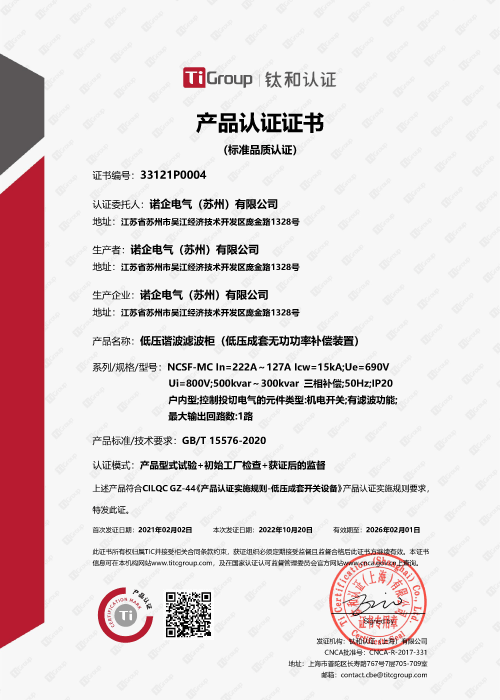

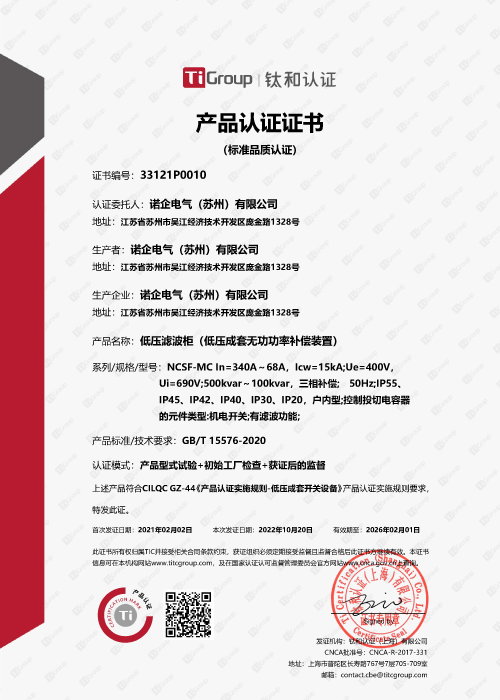

Certifications
