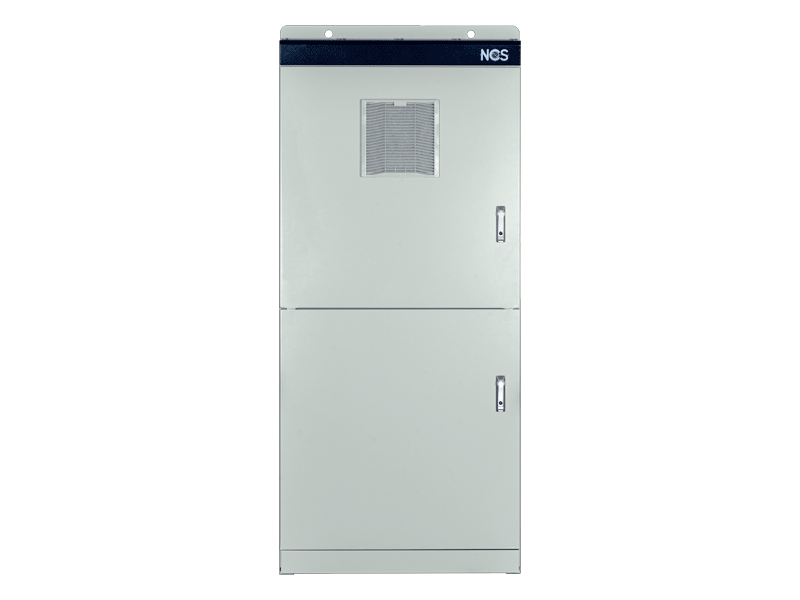

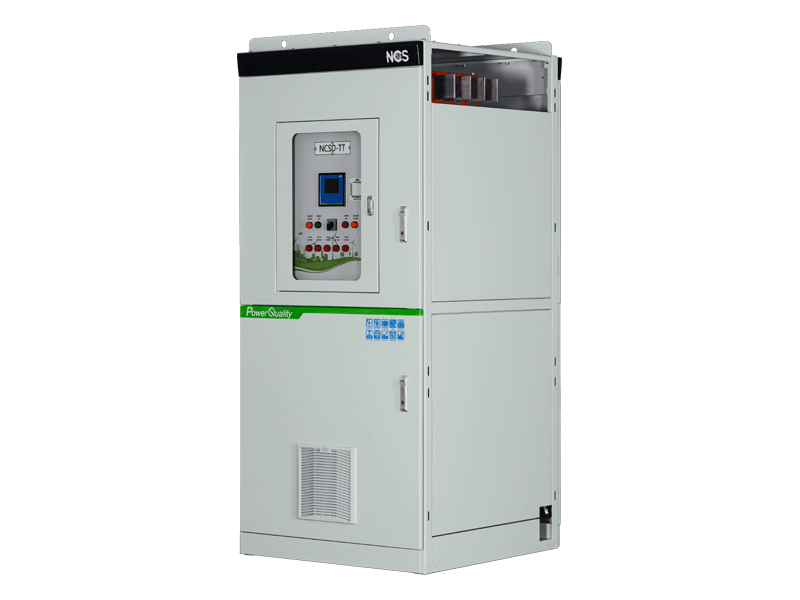

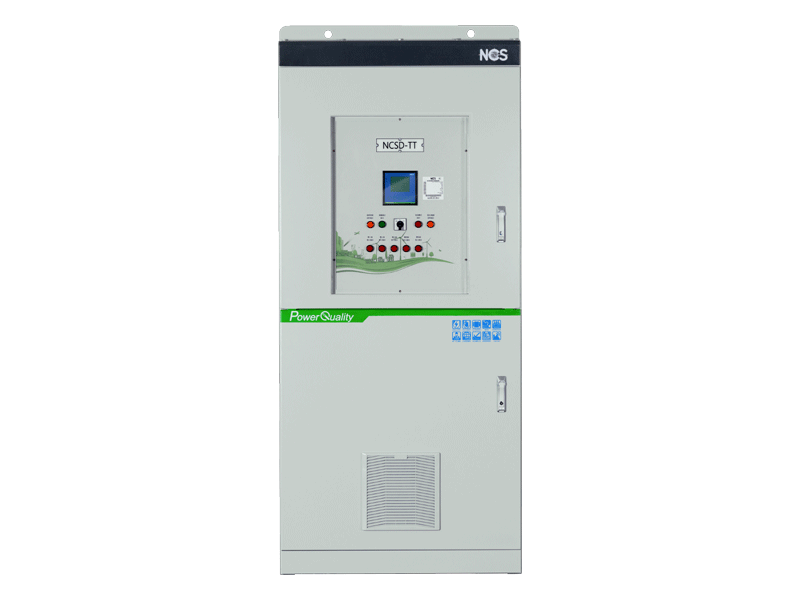

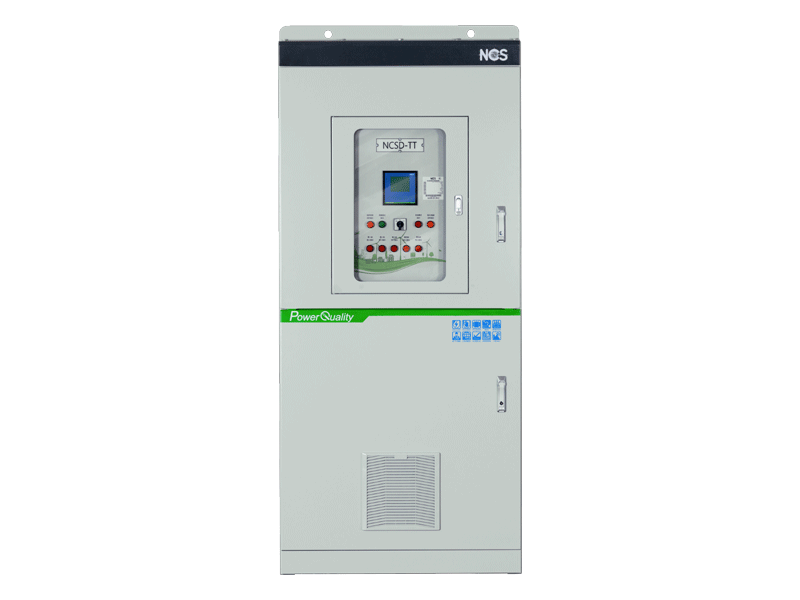

NCSD-TT
Low Voltage type Thyristor-Switched Tuned Filter System
Features
Designed for fast-changing large loads such as spot welders and crushers. Thyristor-switched tuned filters minimize voltage dips, stabilize system voltage, reduce energy loss, and improve production efficiency.
Main Functions
Prevent series resonance
Prevent parallel resonance
Improve power factor
Zero-crossing switching
Fast dynamic compensation

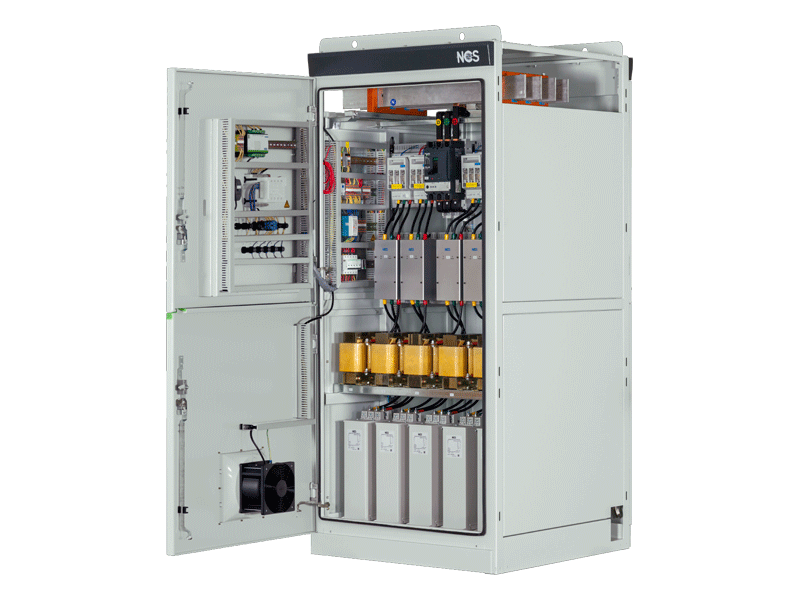

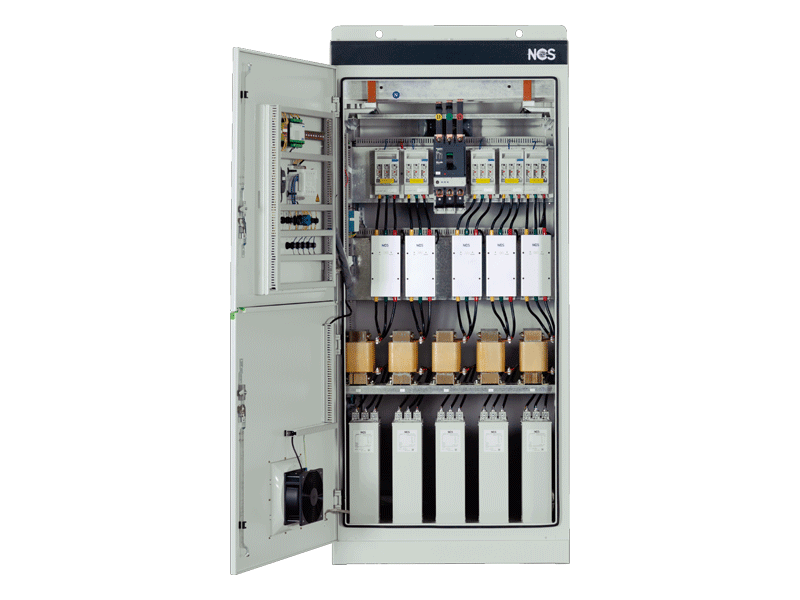

Main Components
Main incoming-line protection
Busbar system
Electromagnetic contactor
Thyristor switching unit
Low-voltage tuning reactor

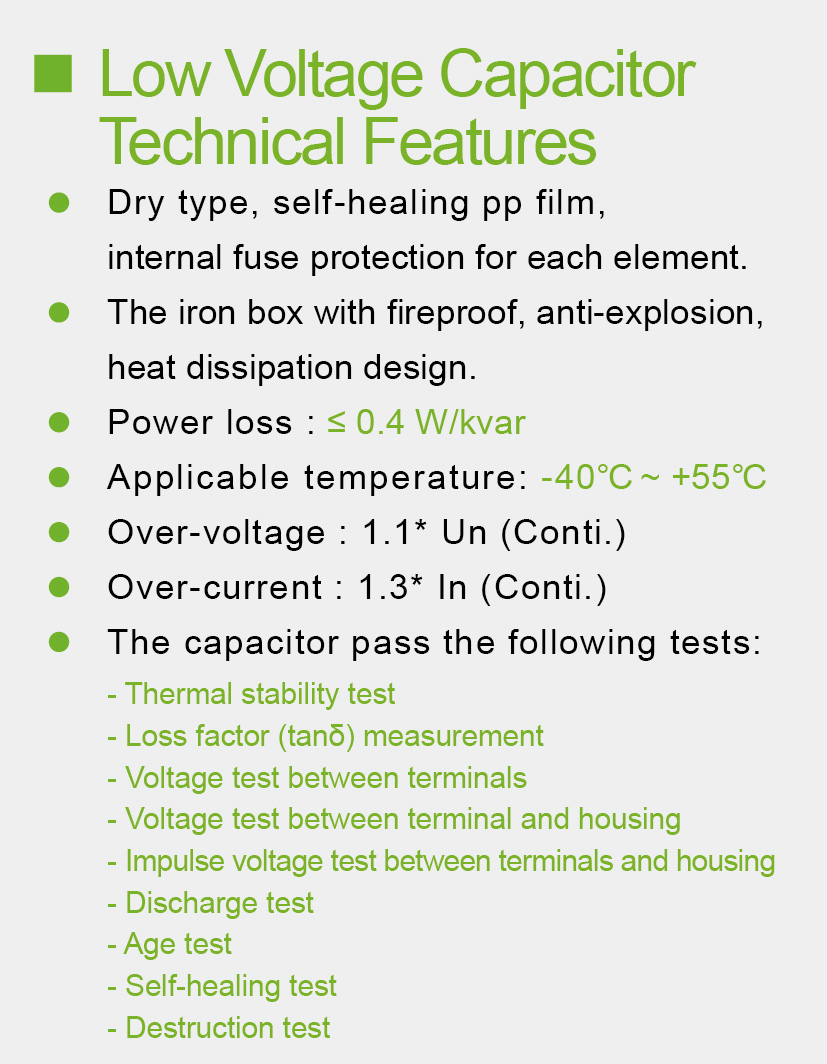

Low-voltage capacitor
Arc-flash protection system
Thyristor switching control system
Automatic Power Factor Regulator (APFR)

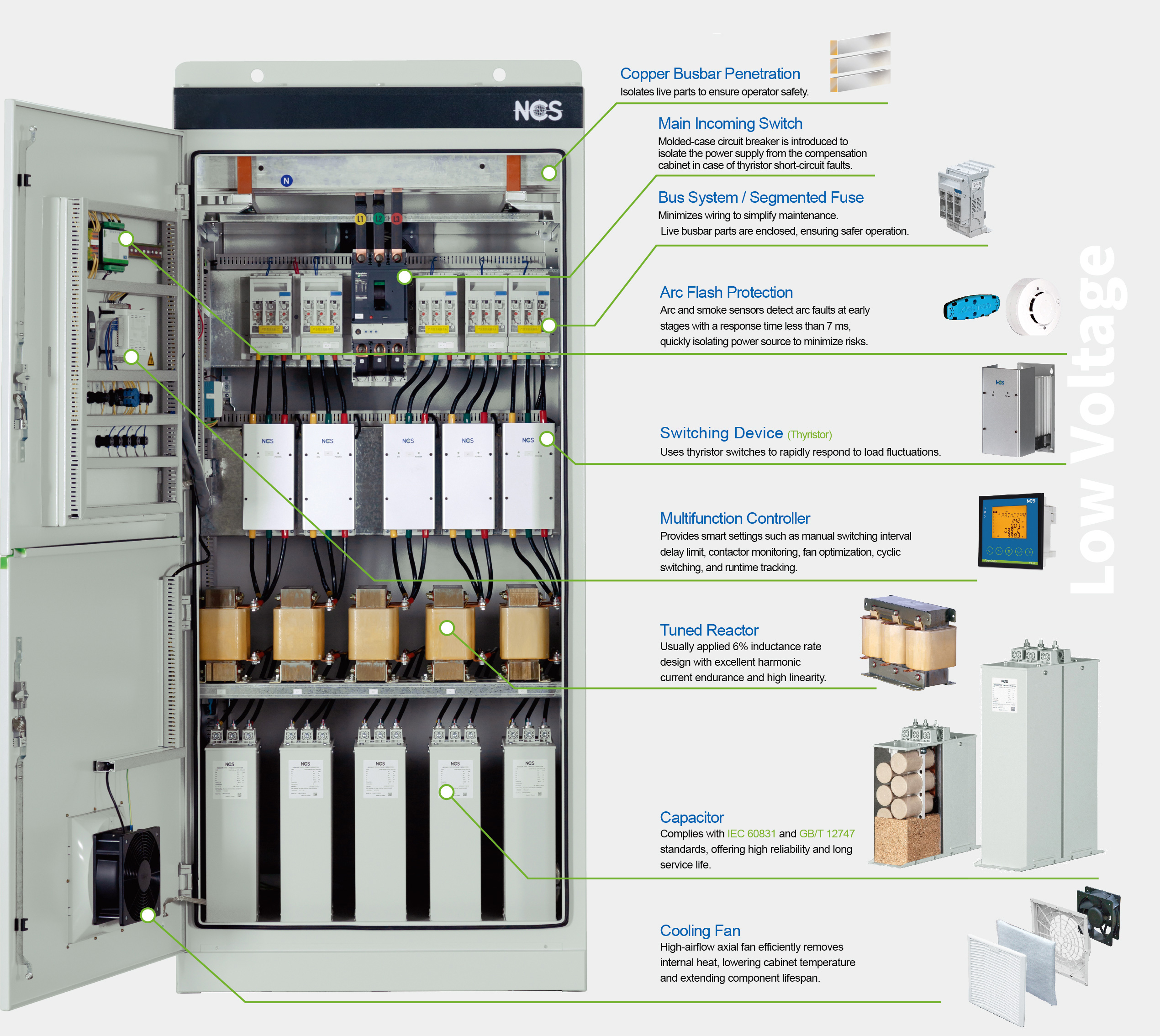

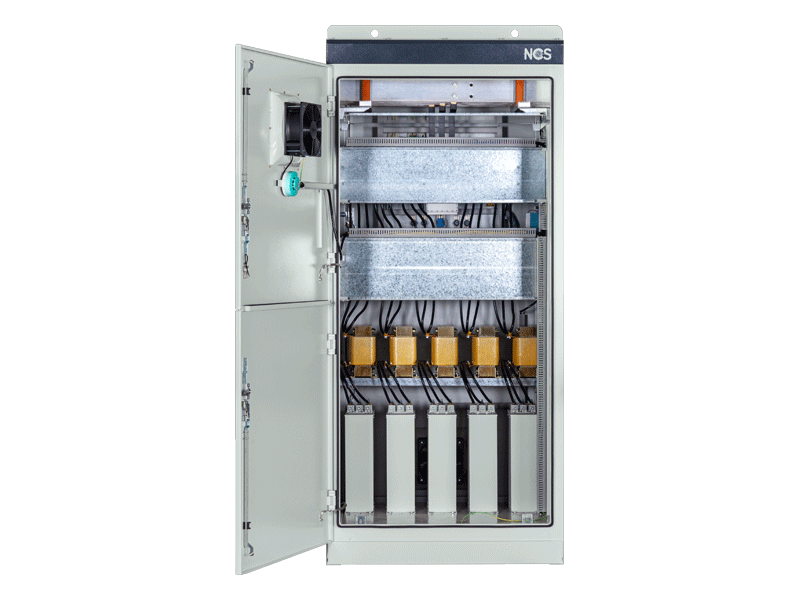

Main Component

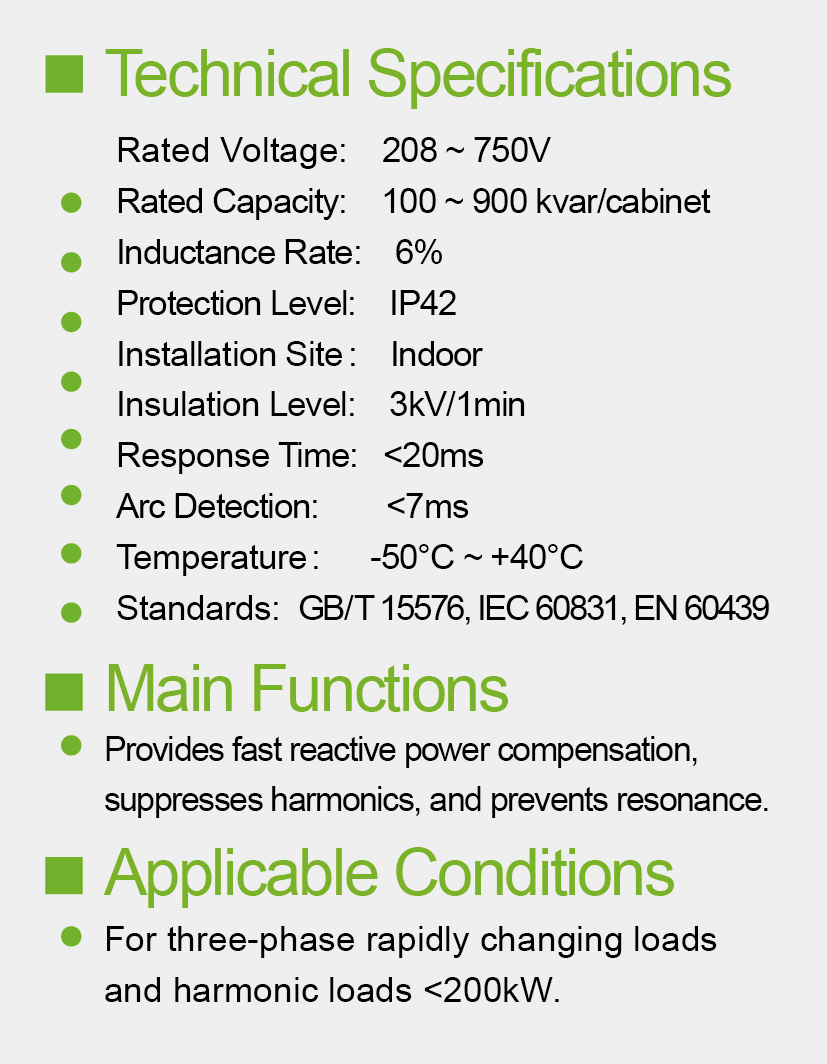

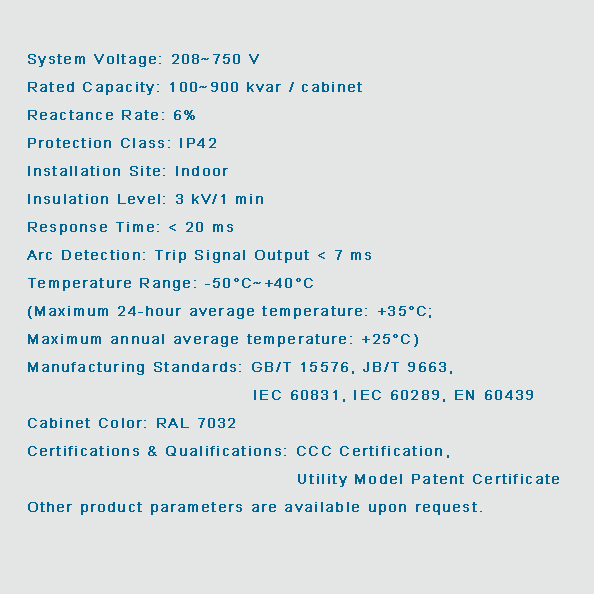

Specifications

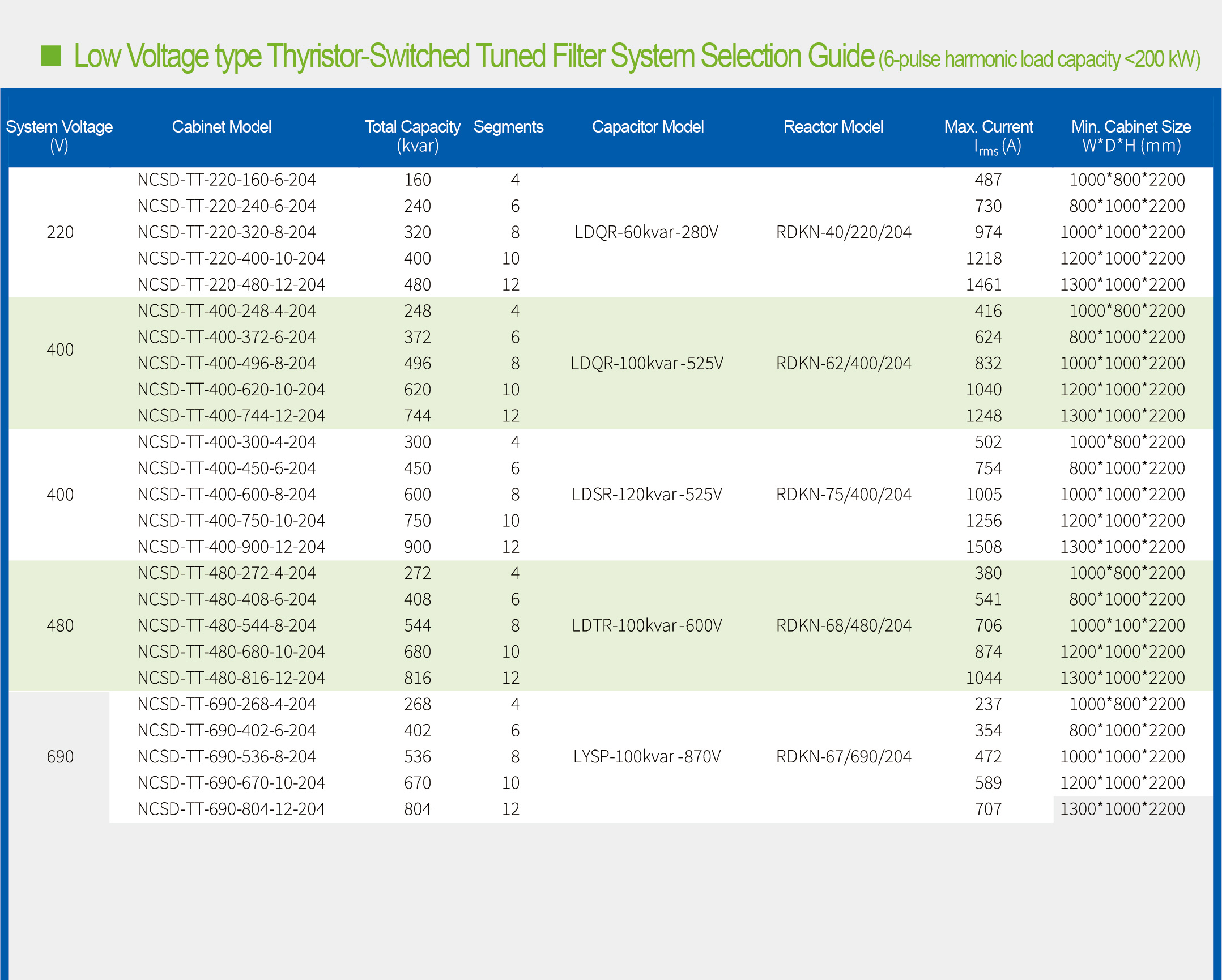

Mod&Spec

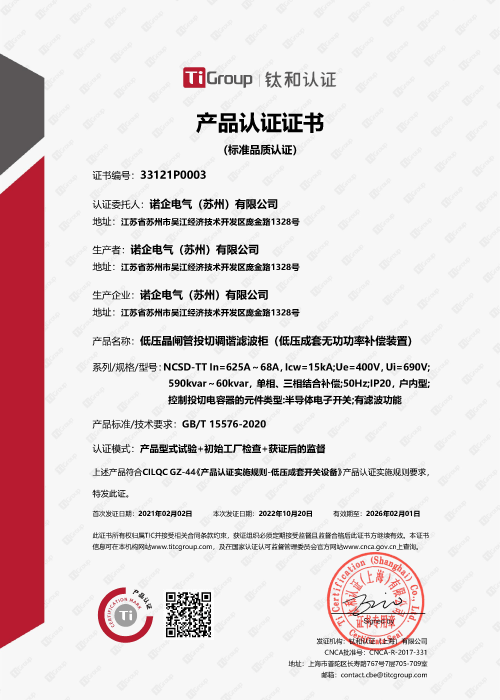

Certifications
