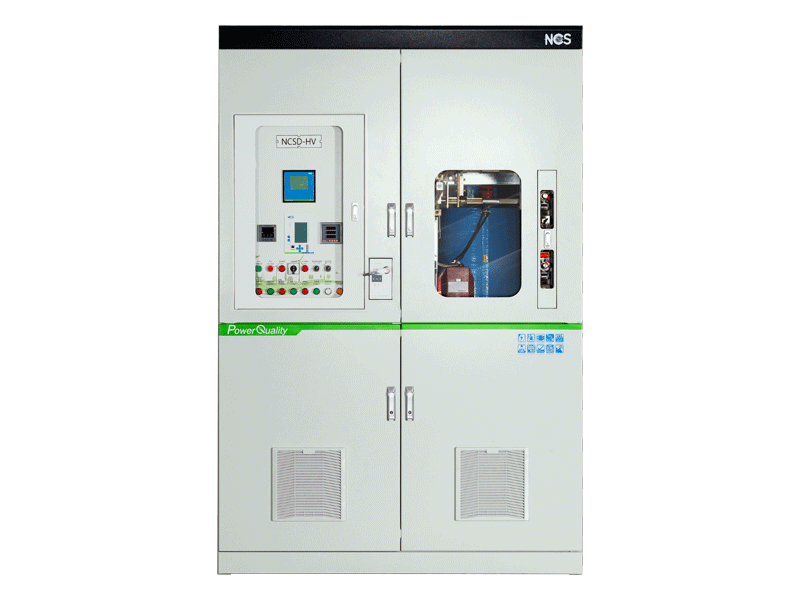

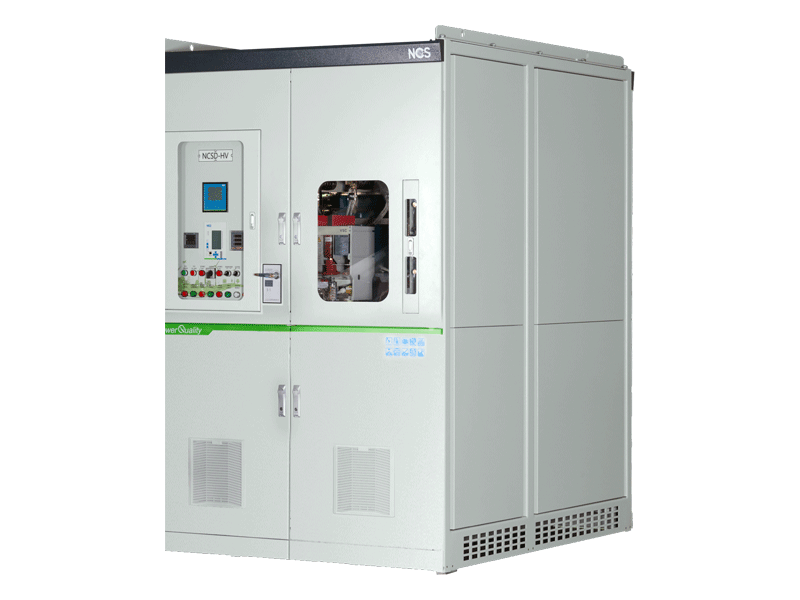

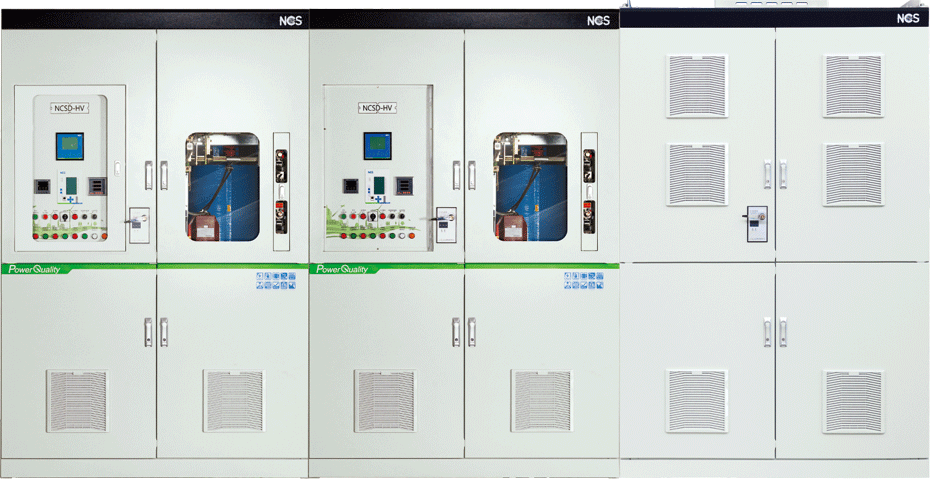

NCSD-HV
High Voltage type Detuned Filter System
Features
High-voltage tuned filters provide reactive power compensation in systems with moderate harmonics. The series combination of capacitors and reactors prevents resonance and improves power factor.
Main Functions
Prevent series resonance
Prevent parallel resonance
Improve power factor

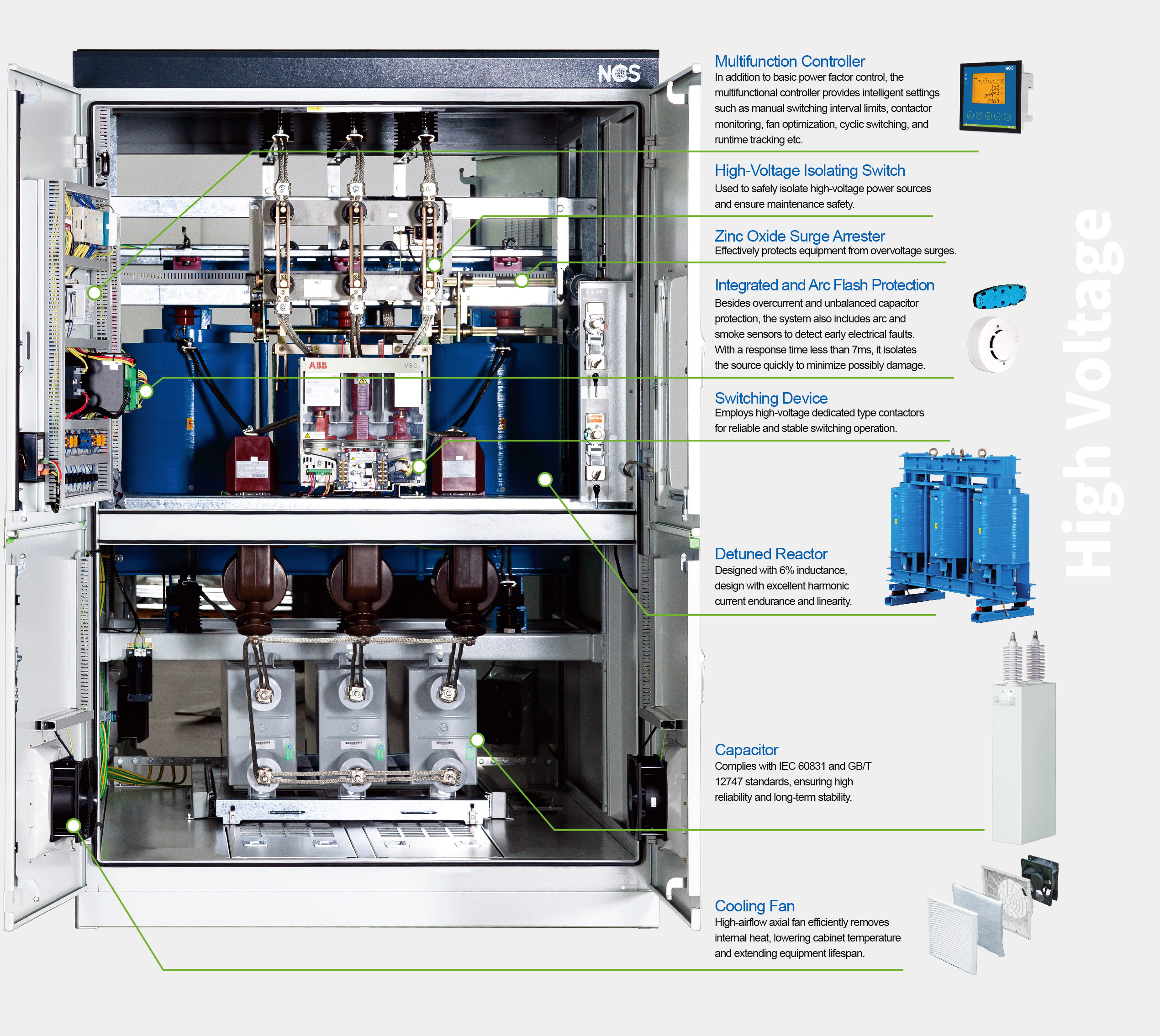

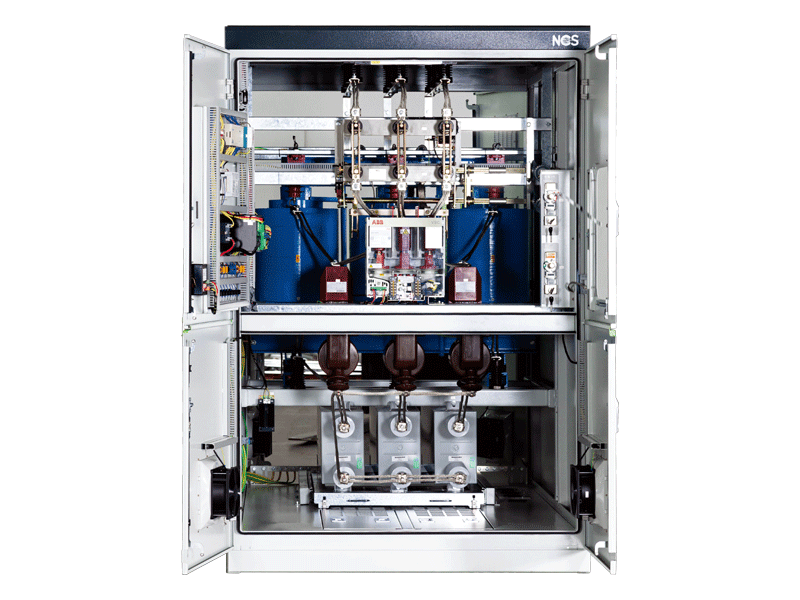

Main Components
High-voltage disconnect switch
Vacuum contactor
Zinc oxide surge arrester
Discharge coil
High-voltage tuning reactor
High-voltage capacitor
Arc-flash protection system
Draw-out structural design
Main Component

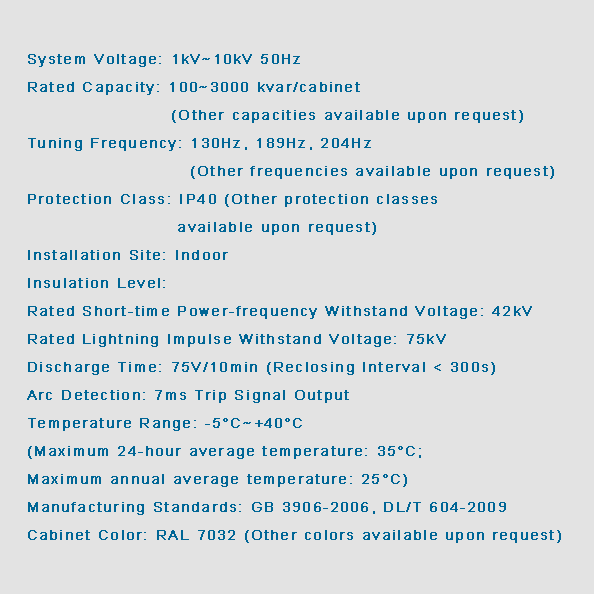

Specifications

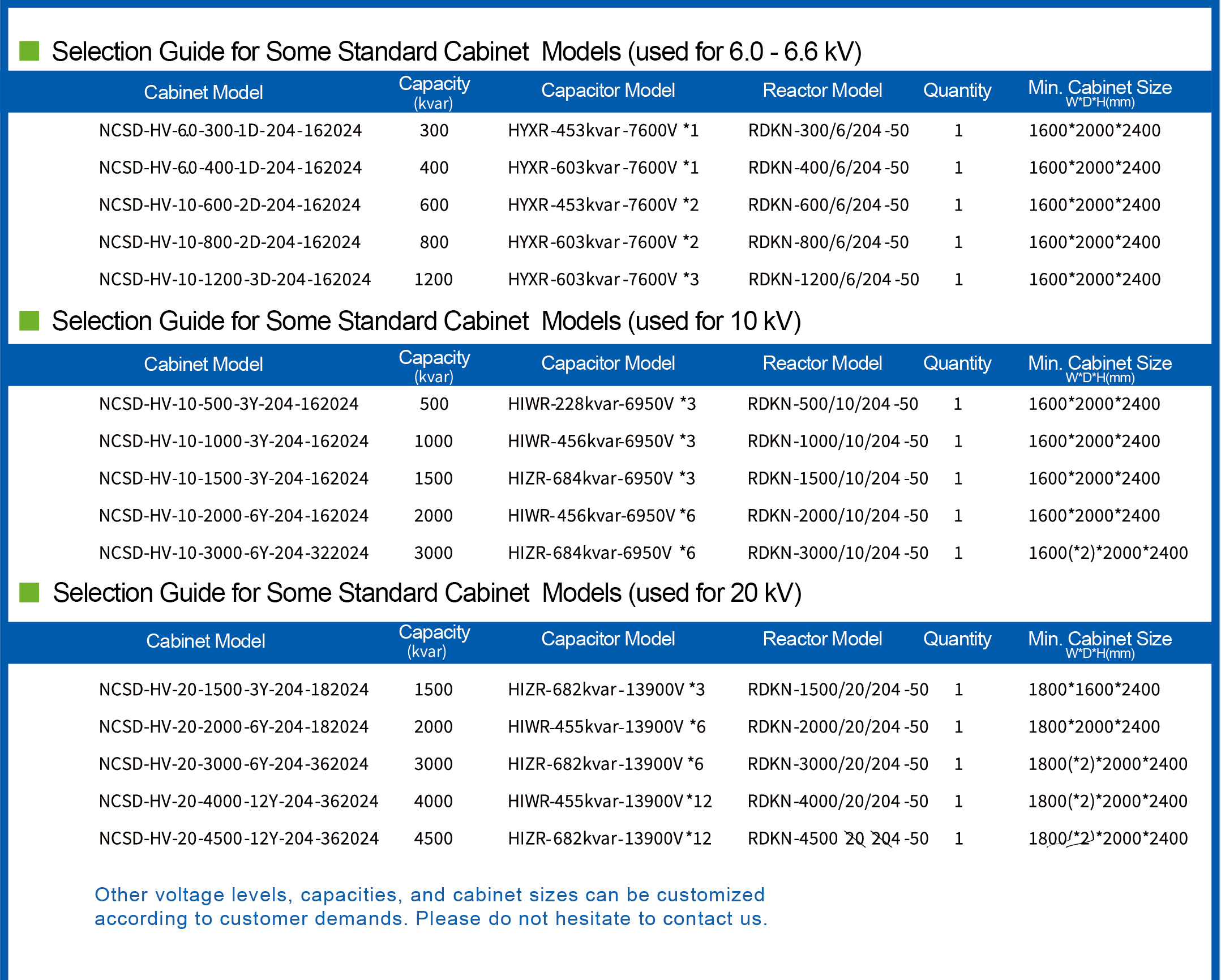

Mod&Spec

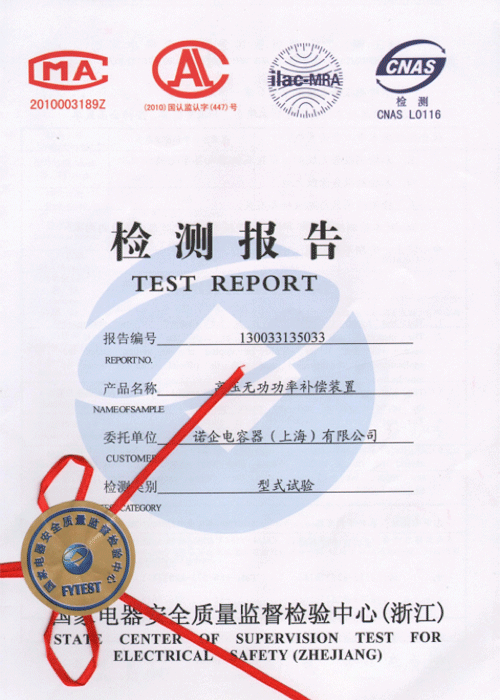

Certifications
